5 Bit Chamfer Edge Forming Router Bit Set - 1/4" Shank - Yonico 13508q

While bevel bits are mostly used for edging, these bits can also be used to create miter joints of various angles. Some of the available angle degrees are 11.25°, 15°, 22.5°, 30° & 45°. Cutting these angles into 2 adjoining pieces of wood will create miter joints of 22.5°, 30°, 45°, 60° & 90° degrees respectively.

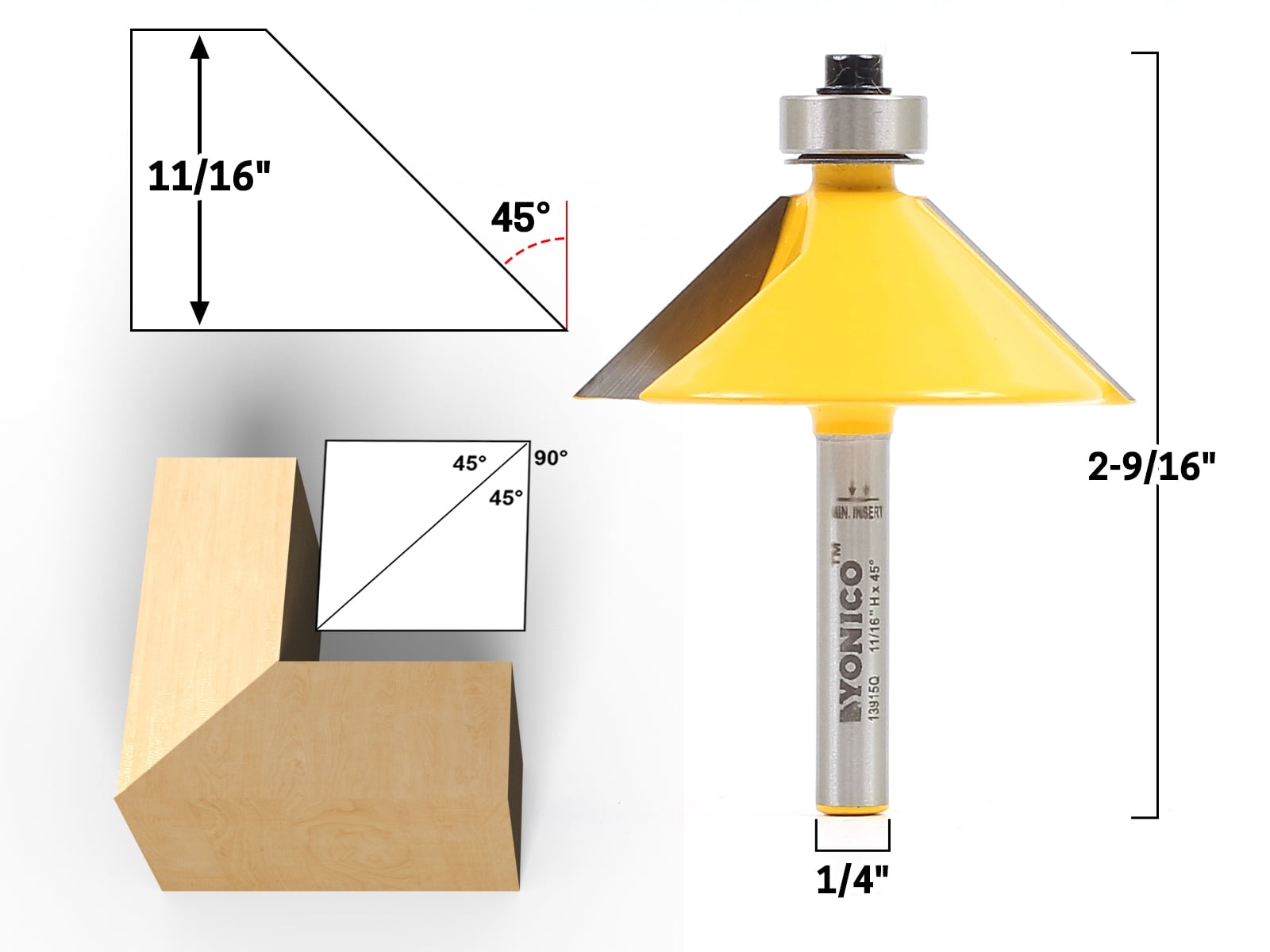

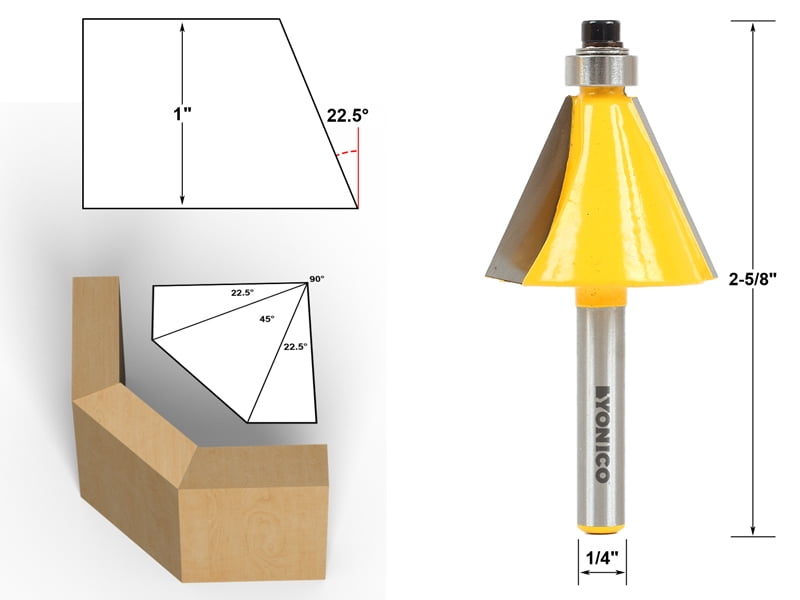

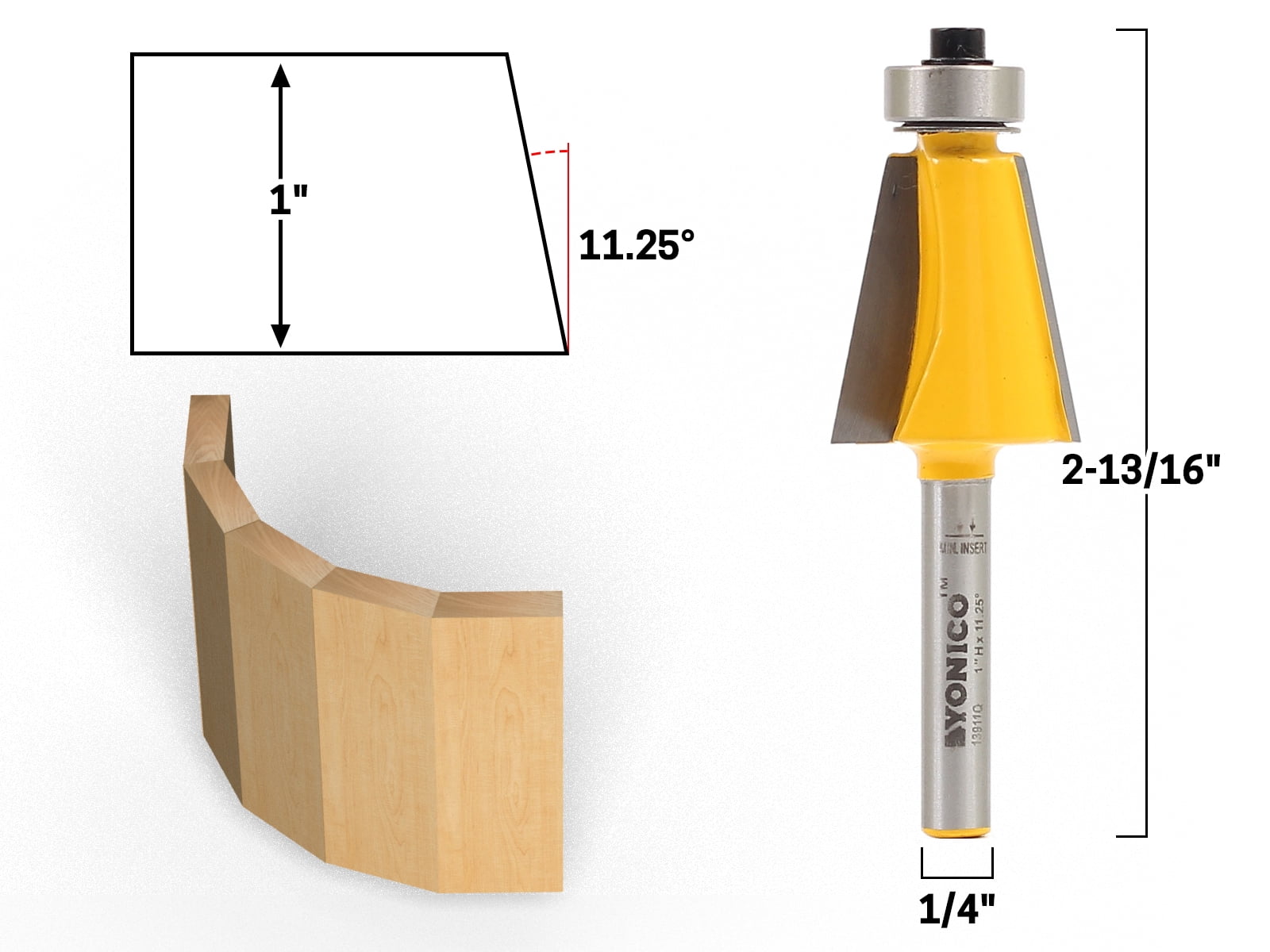

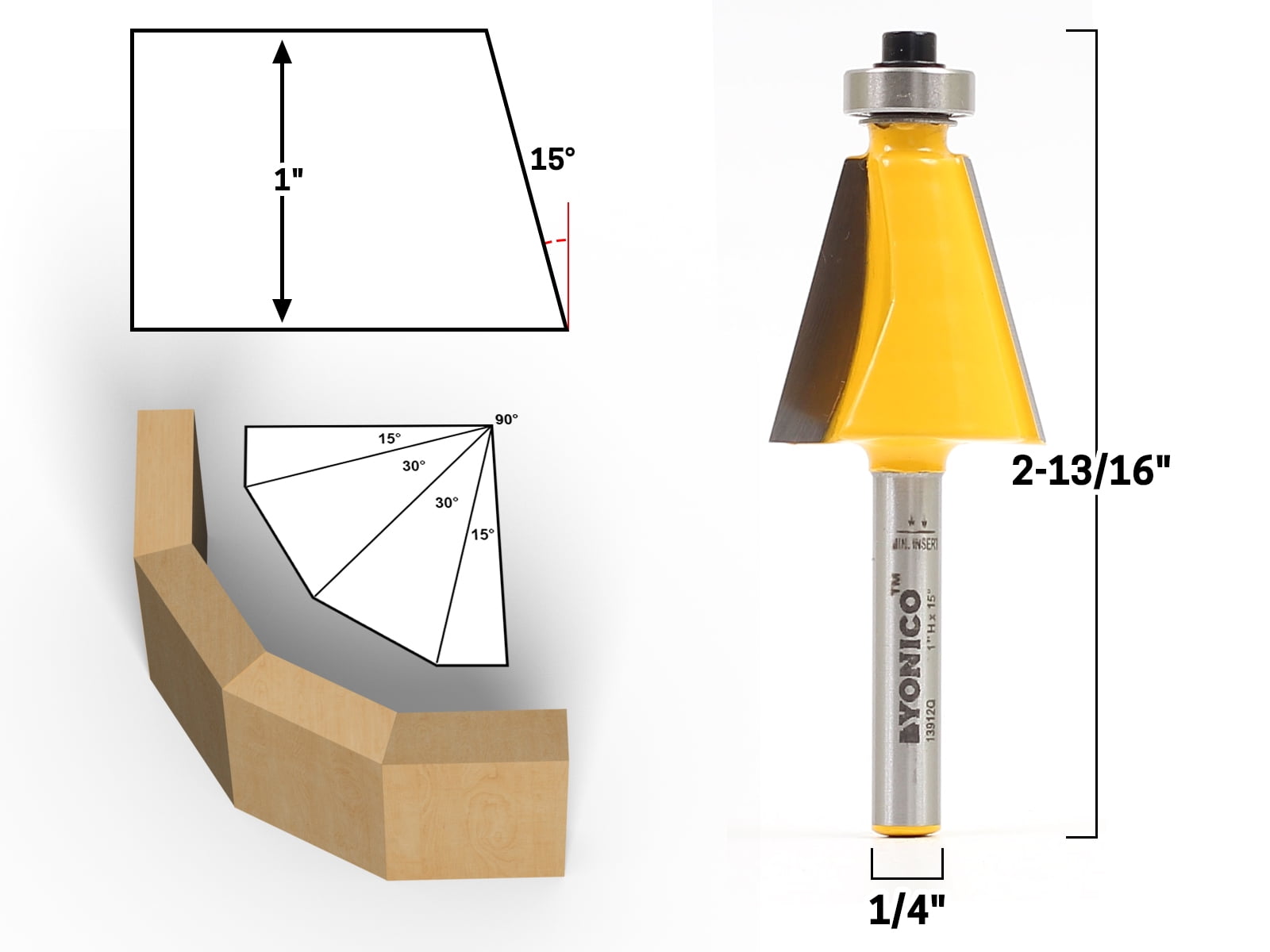

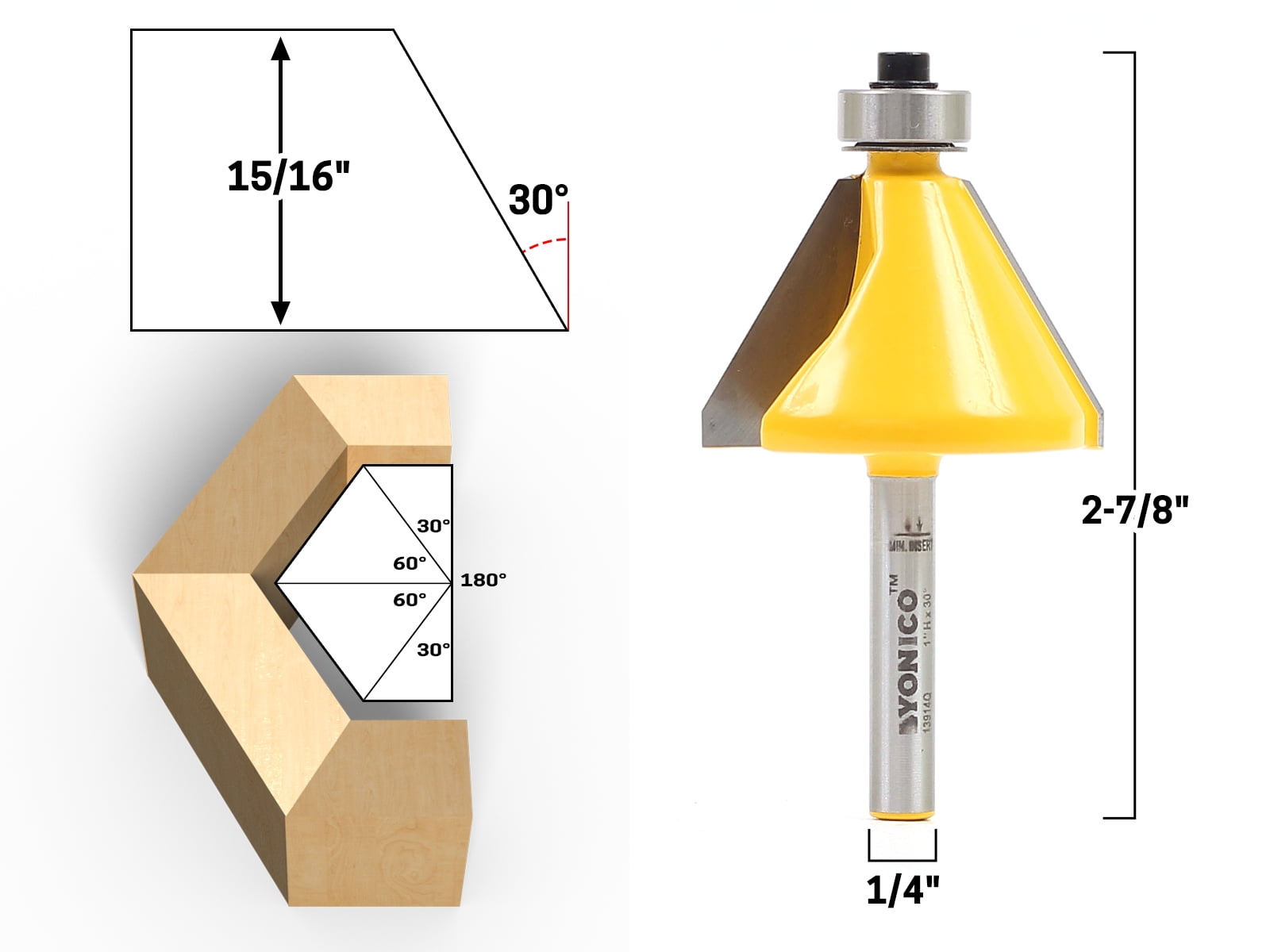

• Own this practical 5 bit chamfer Router bit set complete with the following 5 chamfer sizes; 11.25°, 15°, 22.5°, 30° and 45°. Router bit dimensions are as follows: • 11.25° Chamfer - 7/8" Diameter, 1" Cutter Height, 2-3/4" Overall Height, 3/16" Cutter Depth • 15° Chamfer - 1" Diameter, 1" Cutter Height, 2-3/4" Overall Height, 1/4" Cutter Depth • 22.5° Chamfer - 1-1/4" Diameter, 1" Cutter Height, 2-13/16" Overall Height, 3/8" Cutter Depth • 30° Chamfer - 1-1/2" Diameter, 1" Cutter Height, 2-3/4" Overall Height, 1/2" Cutter Depth • 45° Chamfer - 1-7/8" Diameter, 23/32" Cutter Height, 2-1/2" Overall Height, 11/16" Cutter Depth. Two flute carbide cutters and 1/4" shanks.
• Add a beveled edge to surface edges or create accurate miter joints
• Premium C3 micro-grain Carbide blades for a sharper & longer lasting edge
